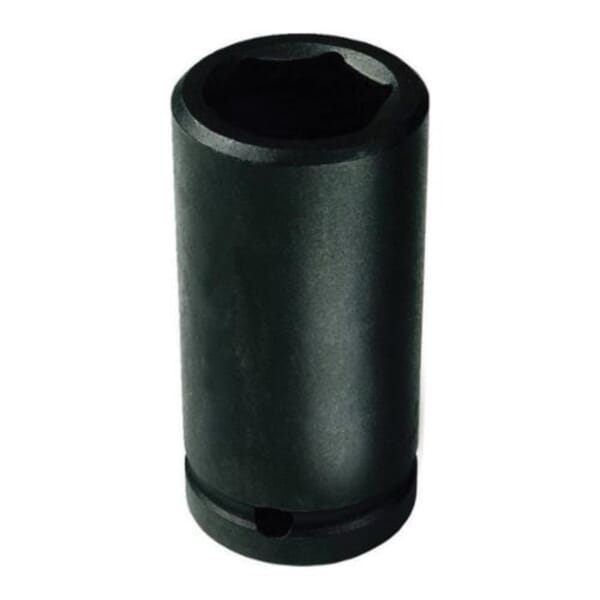

Proto TorquePlus J07526L Deep Length Socket, 3/4 in Square Drive, 1-5/8 in, 6 Points

Product Line: Proto
MFG #: J07526L
Proto TorquePlus J07526L Deep Length Socket, 3/4 in Square Drive, 1-5/8 in, 6 Points

Your Price

$44.33 / EA

Proto TorquePlus J07526L Deep Length Socket, 3/4 in Square Drive, 1-5/8 in, 6 Points

Product Line: Proto
MFG #: J07526L

Your Price

$44.33 / EA

Details

Part#267936084

Manufacturer:Stanley Black & Decker

UPC:662679360849

MFG #J07526L

Proto TorquePlus Socket, Deep Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 1-5/8 in Socket, 3-13/16 in Overall Length, 2-1/4 in Opening Depth, 1-3/4 in Drive End Width, 2-3/8 in Socket End Width, Side Locking Hole Locking, 6 Points, 2-7/8 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

Specifications

Bolt Clearance Depth
2-7/8 in
Drive End Width
1-3/4 in
Drive Size
3/4 in
Drive Type
Square
Finish
Black Oxide
Impact Rated
Yes
Locking Type
Side Locking Hole
Material
High Alloy Steel
Measurement System
Imperial
Number of Points
6
Opening Depth
2-1/4 in
Overall Length
3-13/16 in
Socket End Width
2-3/8 in
Socket Size
1-5/8 in
Type
Deep Length

Application

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Item Features

  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • Stamped size for easy reference
  • Specially heat treated for the correct balance of strength and durability
  • Concentric openings
  • Large clearance holes
  • Tight nut end tolerances
  • Made from high alloy steel for greater strength

Standards

ANSI B107.2|ASME B107.2|Federal Spec GGG-W-660E
267936084

Proto TorquePlus J07526L Deep Length Socket, 3/4 in Square Drive, 1-5/8 in, 6 Points

Description


Proto TorquePlus Socket, Deep Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 1-5/8 in Socket, 3-13/16 in Overall Length, 2-1/4 in Opening Depth, 1-3/4 in Drive End Width, 2-3/8 in Socket End Width, Side Locking Hole Locking, 6 Points, 2-7/8 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

Product Number: 267936084

Manufacturer: Proto

Price:

$44.33 / EA

MFG #: J07526L

Manufacturer: Stanley Black & Decker

UPC: 662679360849

Specifications

Bolt Clearance Depth: 2-7/8 in

Drive End Width: 1-3/4 in

Drive Size: 3/4 in

Drive Type: Square

Finish: Black Oxide

Impact Rated: Yes

Locking Type: Side Locking Hole

Material: High Alloy Steel

Measurement System: Imperial

Number of Points: 6

Opening Depth: 2-1/4 in

Overall Length: 3-13/16 in

Socket End Width: 2-3/8 in

Socket Size: 1-5/8 in

Type: Deep Length

Standards

ANSI B107.2|ASME B107.2|Federal Spec GGG-W-660E
