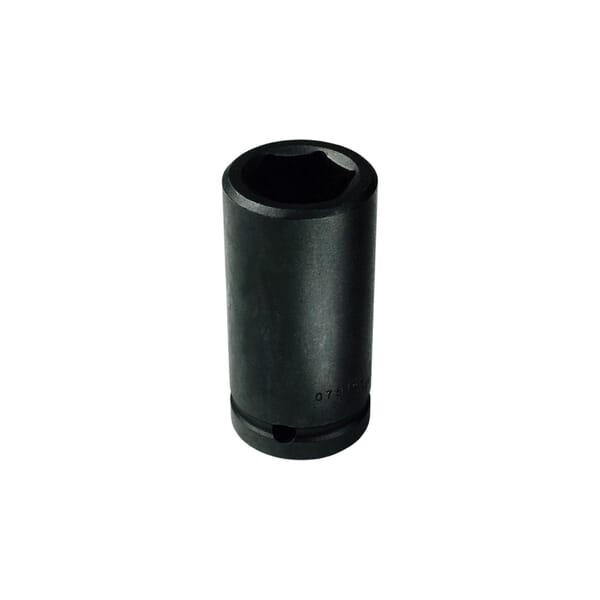

Proto TorquePlus J07524L Deep Length Socket, 3/4 in Square Drive, 1-1/2 in, 6 Points

Product Line: Proto
MFG #: J07524L
Proto TorquePlus J07524L Deep Length Socket, 3/4 in Square Drive, 1-1/2 in, 6 Points

Your Price

$41.12 / EA
Pack1/BX

Proto TorquePlus J07524L Deep Length Socket, 3/4 in Square Drive, 1-1/2 in, 6 Points

Product Line: Proto
MFG #: J07524L

Your Price

$41.12 / EA
Pack1/BX

Details

Part#267936078

Manufacturer:Stanley Black & Decker

UPC:662679360788

MFG #J07524L

Proto TorquePlus Socket, Deep Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 1-1/2 in Socket, 3-1/2 in Overall Length, 1-1/16 in Opening Depth, 1-3/4 in Drive End Width, 2-3/8 in Socket End Width, Side Locking Hole Locking, 6 Points, 2-7/16 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

Specifications

Bolt Clearance Depth
2-7/16 in
Drive End Width
1-3/4 in
Drive Size
3/4 in
Drive Type
Square
Finish
Black Oxide
Impact Rated
Yes
Locking Type
Side Locking Hole
Material
High Alloy Steel
Measurement System
Imperial
Number of Points
6
Opening Depth
1-1/16 in
Overall Length
3-1/2 in
Socket End Width
2-3/8 in
Socket Size
1-1/2 in
Type
Deep Length

Application

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Item Features

  • Proto 6 point impact sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials
  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius-corners design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
  • Stamped size for easy reference
  • Specially heat treated for the correct balance of strength and durability
  • Concentric openings
  • Large clearance holes
  • Tight nut end tolerances
  • Made from high alloy steel for greater strength

Standards

ANSI B107.2|ASME B107.2|Federal Specification GGG-W-660E
267936078

Proto TorquePlus J07524L Deep Length Socket, 3/4 in Square Drive, 1-1/2 in, 6 Points

Description


Proto TorquePlus Socket, Deep Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 1-1/2 in Socket, 3-1/2 in Overall Length, 1-1/16 in Opening Depth, 1-3/4 in Drive End Width, 2-3/8 in Socket End Width, Side Locking Hole Locking, 6 Points, 2-7/16 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

Product Number: 267936078

Manufacturer: Proto

Price:

$41.12 / EA
Pack1/BX

MFG #: J07524L

Manufacturer: Stanley Black & Decker

UPC: 662679360788

Specifications

Bolt Clearance Depth: 2-7/16 in

Drive End Width: 1-3/4 in

Drive Size: 3/4 in

Drive Type: Square

Finish: Black Oxide

Impact Rated: Yes

Locking Type: Side Locking Hole

Material: High Alloy Steel

Measurement System: Imperial

Number of Points: 6

Opening Depth: 1-1/16 in

Overall Length: 3-1/2 in

Socket End Width: 2-3/8 in

Socket Size: 1-1/2 in

Type: Deep Length

Standards

ANSI B107.2|ASME B107.2|Federal Specification GGG-W-660E
