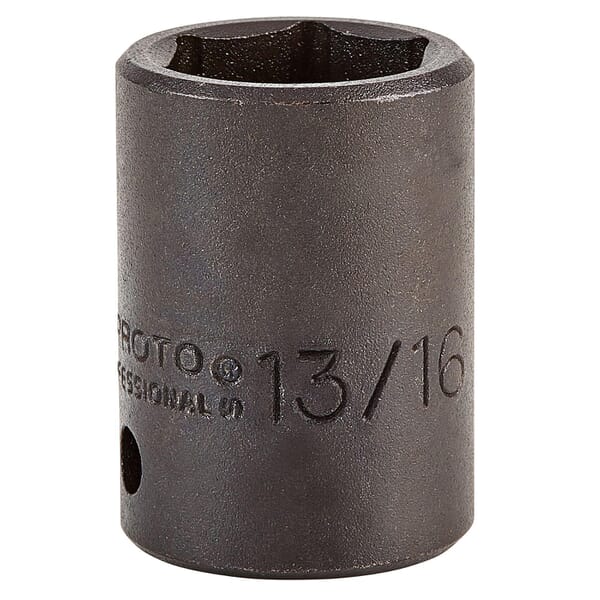

Proto TorquePlus J7426H Standard Length Socket, Imperial, 1/2 in Square Drive, 13/16 in

Product Line: Proto
MFG #: J7426H
Proto TorquePlus J7426H Standard Length Socket, Imperial, 1/2 in Square Drive, 13/16 in

Your Price

$9.63 / EA

Proto TorquePlus J7426H Standard Length Socket, Imperial, 1/2 in Square Drive, 13/16 in

Product Line: Proto
MFG #: J7426H

Your Price

$9.63 / EA

Details

Part#267934132

Manufacturer:Stanley Black & Decker

UPC:662679341329

MFG #J7426H

Proto TorquePlus Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 13/16 in Socket, 1-5/8 in Overall Length, 11/16 in Opening Depth, 1-13/64 in Drive End Width, 1-13/64 in Socket End Width, Side Locking Hole Locking, 6 Points, 31/32 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

Specifications

Bolt Clearance Depth
31/32 in
Drive End Width
1-13/64 in
Drive Size
1/2 in
Drive Type
Square
Finish
Black Oxide
Impact Rated
Yes
Locking Type
Side Locking Hole
Material
High Alloy Steel
Measurement System
Imperial
Number of Points
6
Opening Depth
11/16 in
Overall Length
1-5/8 in
Socket End Width
1-13/64 in
Socket Size
13/16 in
Type
Standard Length

Application

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Item Features

  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • Specially heat treated for the correct balance of strength and durability
  • Concentric openings
  • Large clearance holes
  • Tight nut end tolerances
  • Made from high alloy steel for greater strength
  • https://www.youtube.com/watch?v=JbPHzVaTH6M

Standards

ANSI B107.2|ASME B107.110-2012|Federal Specification GGG-W-660A

Documents

Catalog
Video Link
267934132

Proto TorquePlus J7426H Standard Length Socket, Imperial, 1/2 in Square Drive, 13/16 in

Description


Proto TorquePlus Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 13/16 in Socket, 1-5/8 in Overall Length, 11/16 in Opening Depth, 1-13/64 in Drive End Width, 1-13/64 in Socket End Width, Side Locking Hole Locking, 6 Points, 31/32 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

Product Number: 267934132

Manufacturer: Proto

Price:

$9.63 / EA

MFG #: J7426H

Manufacturer: Stanley Black & Decker

UPC: 662679341329

Specifications

Bolt Clearance Depth: 31/32 in

Drive End Width: 1-13/64 in

Drive Size: 1/2 in

Drive Type: Square

Finish: Black Oxide

Impact Rated: Yes

Locking Type: Side Locking Hole

Material: High Alloy Steel

Measurement System: Imperial

Number of Points: 6

Opening Depth: 11/16 in

Overall Length: 1-5/8 in

Socket End Width: 1-13/64 in

Socket Size: 13/16 in

Type: Standard Length

Standards

ANSI B107.2|ASME B107.110-2012|Federal Specification GGG-W-660A
