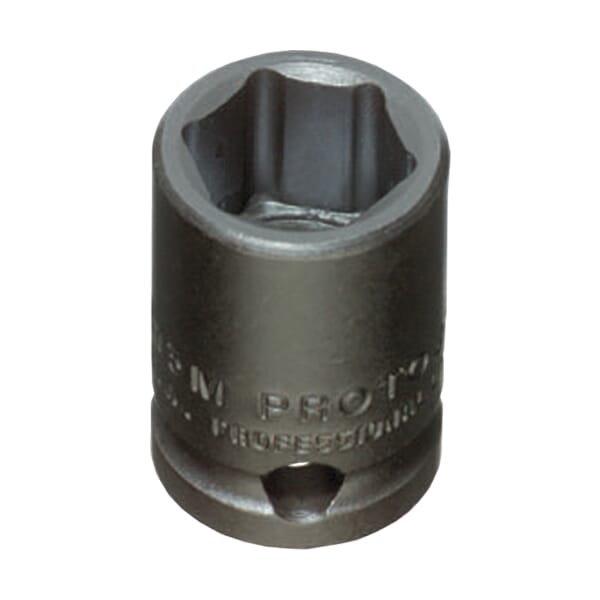

Proto TorquePlus J7210M Standard Length Socket, Metric, 3/8 in Square Drive, 10 mm

Product Line: Proto
MFG #: J7210M
Proto TorquePlus J7210M Standard Length Socket, Metric, 3/8 in Square Drive, 10 mm

Your Price

$6.40 / EA

Proto TorquePlus J7210M Standard Length Socket, Metric, 3/8 in Square Drive, 10 mm

Product Line: Proto
MFG #: J7210M

Your Price

$6.40 / EA

Details

Part#267933035

Manufacturer:Stanley Black & Decker

UPC:662679330354

MFG #J7210M

Proto TorquePlus Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Square Drive, 3/8 in Drive, 10 mm Socket, 26.2 mm Overall Length, 9.5 mm Opening Depth, 17.3 mm Drive End Width, 17.3 mm Socket End Width, Side Locking Hole Locking, 6 Points, 13.5 mm Bolt Clearance Depth, Alloy Steel, Black Oxide

Specifications

Bolt Clearance Depth
13.5 mm
Drive End Width
17.3 mm
Drive Size
3/8 in
Drive Type
Square
Finish
Black Oxide
Impact Rated
Yes
Locking Type
Side Locking Hole
Material
Alloy Steel
Measurement System
Metric
Number of Points
6
Opening Depth
9.5 mm
Overall Length
26.2 mm
Socket End Width
17.3 mm
Socket Size
10 mm
Type
Standard Length

Application

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Item Features

  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • Socket size stamped on tool for easy identification

Standards

ASME B107.110-2012|ASME B107.33M

Documents

Catalog
267933035

Proto TorquePlus J7210M Standard Length Socket, Metric, 3/8 in Square Drive, 10 mm

Description


Proto TorquePlus Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Square Drive, 3/8 in Drive, 10 mm Socket, 26.2 mm Overall Length, 9.5 mm Opening Depth, 17.3 mm Drive End Width, 17.3 mm Socket End Width, Side Locking Hole Locking, 6 Points, 13.5 mm Bolt Clearance Depth, Alloy Steel, Black Oxide

Product Number: 267933035

Manufacturer: Proto

Price:

$6.40 / EA

MFG #: J7210M

Manufacturer: Stanley Black & Decker

UPC: 662679330354

Specifications

Bolt Clearance Depth: 13.5 mm

Drive End Width: 17.3 mm

Drive Size: 3/8 in

Drive Type: Square

Finish: Black Oxide

Impact Rated: Yes

Locking Type: Side Locking Hole

Material: Alloy Steel

Measurement System: Metric

Number of Points: 6

Opening Depth: 9.5 mm

Overall Length: 26.2 mm

Socket End Width: 17.3 mm

Socket Size: 10 mm

Type: Standard Length

Standards

ASME B107.110-2012|ASME B107.33M
