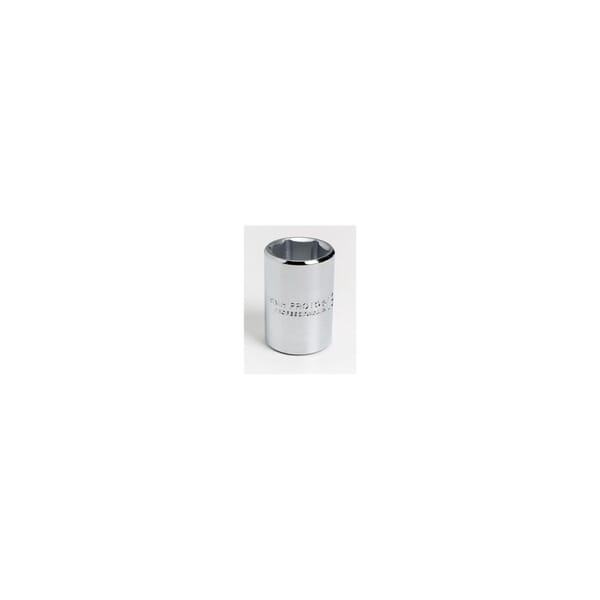

Proto TorquePlus J5412MH Standard Length Socket, Metric, 1/2 in Square Drive, 12 mm

Product Line: Proto
MFG #: J5412MH
Proto TorquePlus J5412MH Standard Length Socket, Metric, 1/2 in Square Drive, 12 mm

Your Price

$10.22 / EA

Proto TorquePlus J5412MH Standard Length Socket, Metric, 1/2 in Square Drive, 12 mm

Product Line: Proto
MFG #: J5412MH

Your Price

$10.22 / EA

Details

Part#267918215

Manufacturer:Stanley Black & Decker

UPC:662679182151

MFG #J5412MH

Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Metric, Square Drive, 1/2 in Drive, 12 mm Socket, 37.8 mm Overall Length, 9 mm Opening Depth, 21.9 mm Drive End Width, 18.5 mm Socket End Width, Ball Locking, 6 Points, 19.9 mm Bolt Clearance Depth, Alloy Steel, Full Polished

Specifications

Bolt Clearance Depth
19.9 mm
Drive End Width
21.9 mm
Drive Size
1/2 in
Drive Type
Square
Finish
Full Polished
Impact Rated
No
Locking Type
Ball
Material
Alloy Steel
Measurement System
Metric
Number of Points
6
Opening Depth
9 mm
Overall Length
37.8 mm
Socket End Width
18.5 mm
Socket Size
12 mm
Type
Standard Length

Item Features

  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners

Documents

Catalog
267918215

Proto TorquePlus J5412MH Standard Length Socket, Metric, 1/2 in Square Drive, 12 mm

Description


Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Metric, Square Drive, 1/2 in Drive, 12 mm Socket, 37.8 mm Overall Length, 9 mm Opening Depth, 21.9 mm Drive End Width, 18.5 mm Socket End Width, Ball Locking, 6 Points, 19.9 mm Bolt Clearance Depth, Alloy Steel, Full Polished

Product Number: 267918215

Manufacturer: Proto

Price:

$10.22 / EA

MFG #: J5412MH

Manufacturer: Stanley Black & Decker

UPC: 662679182151

Specifications

Bolt Clearance Depth: 19.9 mm

Drive End Width: 21.9 mm

Drive Size: 1/2 in

Drive Type: Square

Finish: Full Polished

Impact Rated: No

Locking Type: Ball

Material: Alloy Steel

Measurement System: Metric

Number of Points: 6

Opening Depth: 9 mm

Overall Length: 37.8 mm

Socket End Width: 18.5 mm

Socket Size: 12 mm

Type: Standard Length

Item Features

  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
