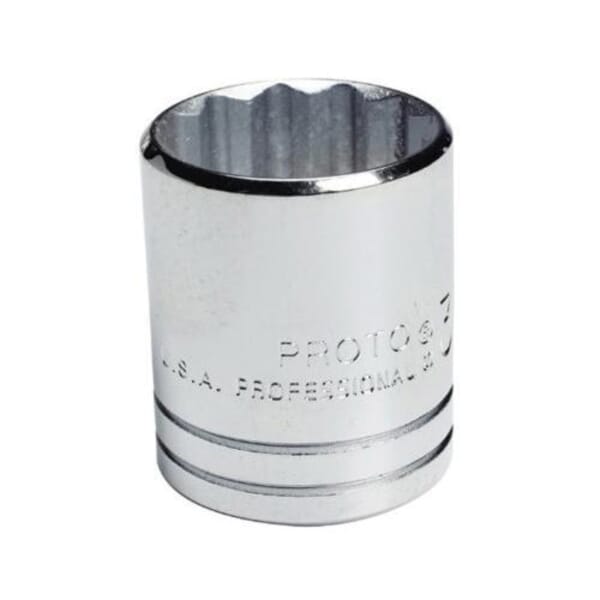

Proto TorquePlus J5414 Standard Length Socket, Imperial, 1/2 in Square Drive, 7/16 in

Product Line: Proto
MFG #: J5414
Proto TorquePlus J5414 Standard Length Socket, Imperial, 1/2 in Square Drive, 7/16 in

Your Price

$8.25 / EA

Proto TorquePlus J5414 Standard Length Socket, Imperial, 1/2 in Square Drive, 7/16 in

Product Line: Proto
MFG #: J5414

Your Price

$8.25 / EA

Details

Part#267918046

Manufacturer:Stanley Black & Decker

UPC:662679180461

MFG #J5414

Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 7/16 in Socket, 1-31/64 in Overall Length, 23/64 in Opening Depth, 55/64 in Drive End Width, 43/64 in Socket End Width, Ball Locking, 12 Points, 1-11/64 in Bolt Clearance Depth, Alloy Steel, Full Polished

Specifications

Bolt Clearance Depth
1-11/64 in
Drive End Width
55/64 in
Drive Size
1/2 in
Drive Type
Square
Finish
Full Polished
Impact Rated
No
Locking Type
Ball
Material
Alloy Steel
Measurement System
Imperial
Number of Points
12
Opening Depth
23/64 in
Overall Length
1-31/64 in
Socket End Width
43/64 in
Socket Size
7/16 in
Type
Standard Length

Application

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Item Features

  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus design allows more torque to be put on the fastener while reducing fastener and allows the user to more easily turn worn, rounded or rusted fasteners

Standards

ANSI B107.1|ASME B107.110-2012|AS954E S3.8.1|Federal Specification GGG-W-641E

Documents

Catalog
267918046

Proto TorquePlus J5414 Standard Length Socket, Imperial, 1/2 in Square Drive, 7/16 in

Description


Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 7/16 in Socket, 1-31/64 in Overall Length, 23/64 in Opening Depth, 55/64 in Drive End Width, 43/64 in Socket End Width, Ball Locking, 12 Points, 1-11/64 in Bolt Clearance Depth, Alloy Steel, Full Polished

Product Number: 267918046

Manufacturer: Proto

Price:

$8.25 / EA

MFG #: J5414

Manufacturer: Stanley Black & Decker

UPC: 662679180461

Specifications

Bolt Clearance Depth: 1-11/64 in

Drive End Width: 55/64 in

Drive Size: 1/2 in

Drive Type: Square

Finish: Full Polished

Impact Rated: No

Locking Type: Ball

Material: Alloy Steel

Measurement System: Imperial

Number of Points: 12

Opening Depth: 23/64 in

Overall Length: 1-31/64 in

Socket End Width: 43/64 in

Socket Size: 7/16 in

Type: Standard Length

Standards

ANSI B107.1|ASME B107.110-2012|AS954E S3.8.1|Federal Specification GGG-W-641E
