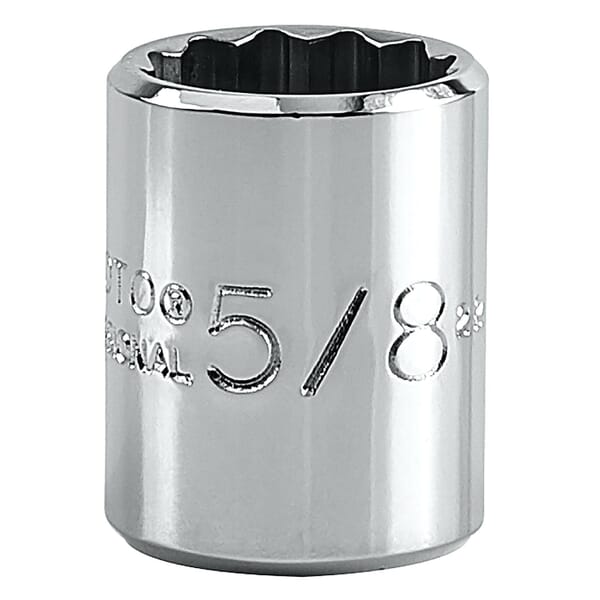

Proto TorquePlus J5220 Standard Length Socket, Imperial, 3/8 in Square Drive, 5/8 in

Product Line: Proto
MFG #: J5220
Proto TorquePlus J5220 Standard Length Socket, Imperial, 3/8 in Square Drive, 5/8 in

Your Price

$7.30 / EA

Proto TorquePlus J5220 Standard Length Socket, Imperial, 3/8 in Square Drive, 5/8 in

Product Line: Proto
MFG #: J5220

Your Price

$7.30 / EA

Details

Part#267916161

Manufacturer:Stanley Black & Decker

UPC:662679161613

MFG #J5220

Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 3/8 in Drive, 5/8 in Socket, 1-1/8 in Overall Length, 33/64 in Opening Depth, 7/8 in Drive End Width, 7/8 in Socket End Width, Ball Locking, 12 Points, 11/16 in Bolt Clearance Depth, Alloy Steel, Full Polished

Specifications

Bolt Clearance Depth
11/16 in
Drive End Width
7/8 in
Drive Size
3/8 in
Drive Type
Square
Finish
Full Polished
Impact Rated
No
Locking Type
Ball
Material
Alloy Steel
Measurement System
Imperial
Number of Points
12
Opening Depth
33/64 in
Overall Length
1-1/8 in
Socket End Width
7/8 in
Socket Size
5/8 in
Type
Standard Length

Application

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Item Features

  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • The TorquePlus design allows more torque to be put on the fastener while reducing fastener

Standards

ANSI B107.1|ASME B107.110-2012|AS954E S3.8.1|Federal Specification GGG-W-641E

Documents

Catalog
267916161

Proto TorquePlus J5220 Standard Length Socket, Imperial, 3/8 in Square Drive, 5/8 in

Description


Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 3/8 in Drive, 5/8 in Socket, 1-1/8 in Overall Length, 33/64 in Opening Depth, 7/8 in Drive End Width, 7/8 in Socket End Width, Ball Locking, 12 Points, 11/16 in Bolt Clearance Depth, Alloy Steel, Full Polished

Product Number: 267916161

Manufacturer: Proto

Price:

$7.30 / EA

MFG #: J5220

Manufacturer: Stanley Black & Decker

UPC: 662679161613

Specifications

Bolt Clearance Depth: 11/16 in

Drive End Width: 7/8 in

Drive Size: 3/8 in

Drive Type: Square

Finish: Full Polished

Impact Rated: No

Locking Type: Ball

Material: Alloy Steel

Measurement System: Imperial

Number of Points: 12

Opening Depth: 33/64 in

Overall Length: 1-1/8 in

Socket End Width: 7/8 in

Socket Size: 5/8 in

Type: Standard Length

Standards

ANSI B107.1|ASME B107.110-2012|AS954E S3.8.1|Federal Specification GGG-W-641E
