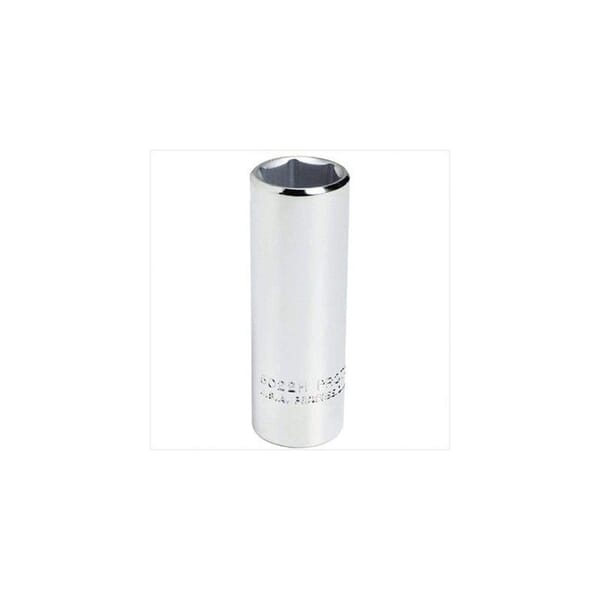

Proto TorquePlus J5022H Deep Length Socket, Imperial, 3/8 in Square Drive, 11/16 in

Product Line: Proto
MFG #: J5022H
Proto TorquePlus J5022H Deep Length Socket, Imperial, 3/8 in Square Drive, 11/16 in

Your Price

$10.72 / EA

Proto TorquePlus J5022H Deep Length Socket, Imperial, 3/8 in Square Drive, 11/16 in

Product Line: Proto
MFG #: J5022H

Your Price

$10.72 / EA

Details

Part#267916102

Manufacturer:Stanley Black & Decker

UPC:662679161026

MFG #J5022H

Proto TorquePlus Socket, Deep Length, No Impact Rated, Measurement System: Imperial, Square Drive, 3/8 in Drive, 11/16 in Socket, 2-3/4 in Overall Length, 21/32 in Opening Depth, 61/64 in Drive End Width, 61/64 in Socket End Width, Ball Locking, 6 Points, 1-23/32 in Bolt Clearance Depth, Alloy Steel, Full Polished

Specifications

Bolt Clearance Depth
1-23/32 in
Drive End Width
61/64 in
Drive Size
3/8 in
Drive Type
Square
Finish
Full Polished
Impact Rated
No
Locking Type
Ball
Material
Alloy Steel
Measurement System
Imperial
Number of Points
6
Opening Depth
21/32 in
Overall Length
2-3/4 in
Socket End Width
61/64 in
Socket Size
11/16 in
Type
Deep Length

Application

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Item Features

  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • The TorquePlus design allows more torque to be put on the fastener while reducing fastener rounding

Standards

ANSI B107.1|ASME B107.110-2012|Federal Specification GGG-W-641E

Documents

Catalog
267916102

Proto TorquePlus J5022H Deep Length Socket, Imperial, 3/8 in Square Drive, 11/16 in

Description


Proto TorquePlus Socket, Deep Length, No Impact Rated, Measurement System: Imperial, Square Drive, 3/8 in Drive, 11/16 in Socket, 2-3/4 in Overall Length, 21/32 in Opening Depth, 61/64 in Drive End Width, 61/64 in Socket End Width, Ball Locking, 6 Points, 1-23/32 in Bolt Clearance Depth, Alloy Steel, Full Polished

Product Number: 267916102

Manufacturer: Proto

Price:

$10.72 / EA

MFG #: J5022H

Manufacturer: Stanley Black & Decker

UPC: 662679161026

Specifications

Bolt Clearance Depth: 1-23/32 in

Drive End Width: 61/64 in

Drive Size: 3/8 in

Drive Type: Square

Finish: Full Polished

Impact Rated: No

Locking Type: Ball

Material: Alloy Steel

Measurement System: Imperial

Number of Points: 6

Opening Depth: 21/32 in

Overall Length: 2-3/4 in

Socket End Width: 61/64 in

Socket Size: 11/16 in

Type: Deep Length

Standards

ANSI B107.1|ASME B107.110-2012|Federal Specification GGG-W-641E
