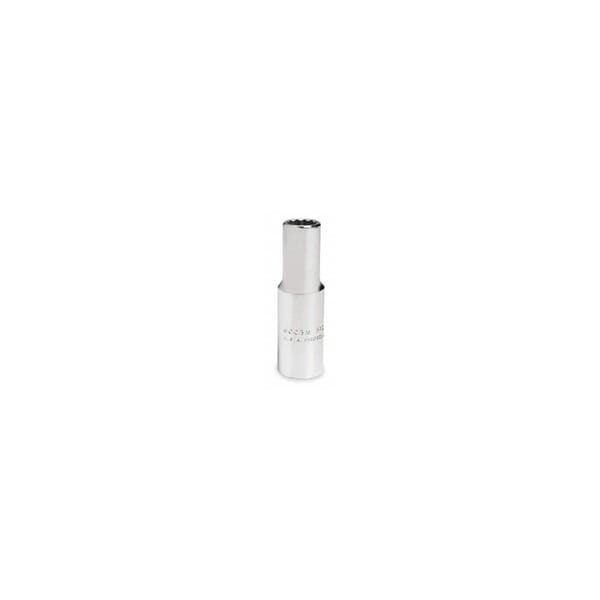

Proto TorquePlus J5019M Deep Length Socket, Metric, 3/8 in Square Drive, 19 mm

Product Line: Proto

MFG #: J5019M

Your Price

$10.63 / EA

Qty

Proto TorquePlus J5019M Deep Length Socket, Metric, 3/8 in Square Drive, 19 mm

Product Line: Proto

MFG #: J5019M

Your Price

$10.63 / EA

Qty

Details

Part#267916095

Manufacturer:Stanley Black & Decker

UPC:662679160951

MFG #J5019M

Proto TorquePlus Socket, Deep Length, No Impact Rated, Measurement System: Metric, Square Drive, 3/8 in Drive, 19 mm Socket, 69.9 mm Overall Length, 17.5 mm Opening Depth, 25.6 mm Drive End Width, 25.6 mm Socket End Width, Ball Locking, 12 Points, 52.4 mm Bolt Clearance Depth, Alloy Steel, Full Polished

Specifications

Bolt Clearance Depth

52.4 mm

Drive End Width

25.6 mm

Drive Size

3/8 in

Drive Type

Square

Finish

Full Polished

Impact Rated

Locking Type

Ball

Material

Alloy Steel

Measurement System

Metric

Number of Points

Opening Depth

17.5 mm

Overall Length

69.9 mm

Socket End Width

25.6 mm

Socket Size

19 mm

Type

Deep Length

Application

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Item Features

The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners

Standards

ASME B107.110-2012|AS954E S3.8.1

Documents

Catalog
