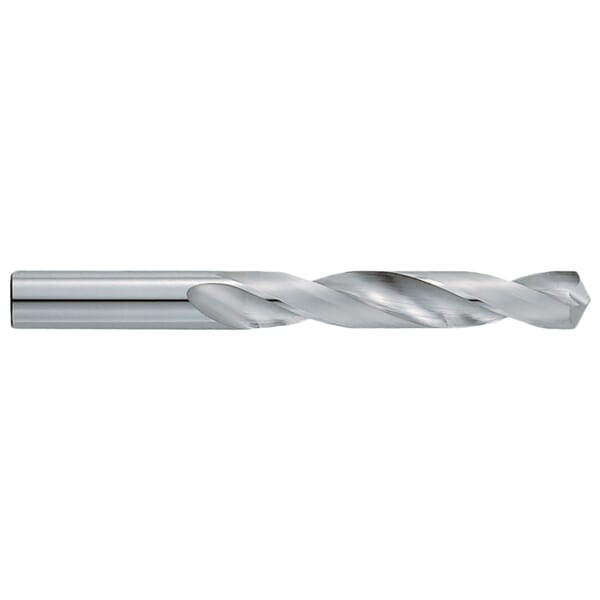

GARR 56345 1200 General Purpose Jobber Length Drill Bit, #26 Drill - Wire, 0.147 in Drill - Decimal Inch, 118 deg Point, Submicron Grain Solid Carbide, Uncoated

Garr Tool Company

GARR 56345 1200 General Purpose Jobber Length Drill Bit, #26 Drill - Wire, 0.147 in Drill - Decimal Inch, 118 deg Point, Submicron Grain Solid Carbide, Uncoated

FREE SHIPPING

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Garr Tool Company

GARR 56345 1200 General Purpose Jobber Length Drill Bit, #26 Drill - Wire, 0.147 in Drill - Decimal Inch, 118 deg Point, Submicron Grain Solid Carbide, Uncoated

FREE SHIPPING

ManufacturerGARR

Part #249056345

MFG #56345

GARR Jobber Length Drill Bit, General Purpose, Series: 1200, Imperial, #26 Drill - Wire, 0.147 in Drill - Decimal Inch, 2-1/2 in Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/8 in Flute Length, 0.147 in Shank, 118 deg Point, 4-Facet/Cam Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Uncoated, Applicable Materials: Carbon Steel, Cast Materials like Aluminum, Steel, Ductile Iron and Gray Iron, Cobalt Base Alloy, High Strength Tool Steel, Iron Base Alloy, Medium Alloy Tool Steel, Monel, Nickel Base Alloy, Stainless Steel and Titanium Alloy

$13.51

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Garr Tool Company

Applicable Materials: Carbon Steel, Cast Materials like Aluminum, Steel, Ductile Iron and Gray Iron, Cobalt Base Alloy, High Strength Tool Steel, Iron Base Alloy, Medium Alloy Tool Steel, Monel, Nickel Base Alloy, Stainless Steel and Titanium Alloy

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Submicron Grain Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.147 in

Drill Size - Wire: #26

Finish: Uncoated

Flute Length: 1-3/8 in

Flute Type: Spiral

Manufacturer Name: Garr Tool Company

Material: Submicron Grain Solid Carbide

Number of Flutes: 2

Overall Length: 2-1/2 in

Point Angle: 118 deg

Point Type: 4-Facet/Cam

Series: 1200

Shank Size: 0.147 in

Type: General Purpose

Cam point (less than or equal to 1/8 in diameter is with 4-facet point)
Live tooling recommended on lathe processes

GARR Jobber Length Drill Bit, General Purpose, Series: 1200, Imperial, #26 Drill - Wire, 0.147 in Drill - Decimal Inch, 2-1/2 in Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/8 in Flute Length, 0.147 in Shank, 118 deg Point, 4-Facet/Cam Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Uncoated, Applicable Materials: Carbon Steel, Cast Materials like Aluminum, Steel, Ductile Iron and Gray Iron, Cobalt Base Alloy, High Strength Tool Steel, Iron Base Alloy, Medium Alloy Tool Steel, Monel, Nickel Base Alloy, Stainless Steel and Titanium Alloy

Specification Sheet

Catalog

Manufacturer Name: Garr Tool Company

Applicable Materials: Carbon Steel, Cast Materials like Aluminum, Steel, Ductile Iron and Gray Iron, Cobalt Base Alloy, High Strength Tool Steel, Iron Base Alloy, Medium Alloy Tool Steel, Monel, Nickel Base Alloy, Stainless Steel and Titanium Alloy

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Submicron Grain Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.147 in

Drill Size - Wire: #26

Finish: Uncoated

Flute Length: 1-3/8 in

Flute Type: Spiral

Manufacturer Name: Garr Tool Company

Material: Submicron Grain Solid Carbide

Number of Flutes: 2

Overall Length: 2-1/2 in

Point Angle: 118 deg

Point Type: 4-Facet/Cam

Series: 1200

Shank Size: 0.147 in

Type: General Purpose

Cam point (less than or equal to 1/8 in diameter is with 4-facet point)
Live tooling recommended on lathe processes

GARR Jobber Length Drill Bit, General Purpose, Series: 1200, Imperial, #26 Drill - Wire, 0.147 in Drill - Decimal Inch, 2-1/2 in Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/8 in Flute Length, 0.147 in Shank, 118 deg Point, 4-Facet/Cam Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Uncoated, Applicable Materials: Carbon Steel, Cast Materials like Aluminum, Steel, Ductile Iron and Gray Iron, Cobalt Base Alloy, High Strength Tool Steel, Iron Base Alloy, Medium Alloy Tool Steel, Monel, Nickel Base Alloy, Stainless Steel and Titanium Alloy

Specification Sheet

Catalog
