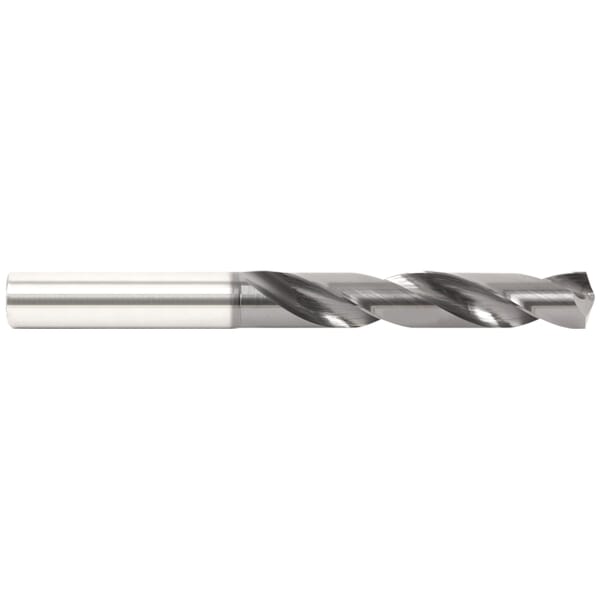

GARR 20746 1580H High Performance Short Length Drill Bit, Z Drill - Letter, 0.413 in Drill - Decimal Inch, Submicron Grain Solid Carbide, TiAlN Coated

Garr Tool Company

GARR 20746 1580H High Performance Short Length Drill Bit, Z Drill - Letter, 0.413 in Drill - Decimal Inch, Submicron Grain Solid Carbide, TiAlN Coated

FREE SHIPPING

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Garr Tool Company

GARR 20746 1580H High Performance Short Length Drill Bit, Z Drill - Letter, 0.413 in Drill - Decimal Inch, Submicron Grain Solid Carbide, TiAlN Coated

FREE SHIPPING

ManufacturerGARR

Part #249020746

MFG #20746

GARR Short Length Drill Bit, High Performance, Series: 1580H, Imperial, Z Drill - Letter, 0.413 in Drill - Decimal Inch, 3-1/2 in Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 1-11/16 in Flute Length, 0.413 in Shank, 140 deg Point, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, TiAlN Coated, Applicable Materials: Cobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel

$89.88

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Garr Tool Company

Applicable Materials: Cobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel

Country of Origin: US

Cutting Depth: 3XD

Cutting Edge Material: Submicron Grain Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.413 in

Drill Size - Letter: Z

Finish: TiAlN Coated

Flute Length: 1-11/16 in

Flute Type: Spiral

Manufacturer Name: Garr Tool Company

Material: Submicron Grain Solid Carbide

Number of Flutes: 2

Overall Length: 3-1/2 in

Point Angle: 140 deg

Series: 1580H

Shank Size: 0.413 in

Type: High Performance

Extended tool life and greater surface finish through faster SFM rates
Up to 50 Percent faster than standard carbide drills
30 deg helix for better chip evacuation
Live tooling recommended on lathe processes

GARR Short Length Drill Bit, High Performance, Series: 1580H, Imperial, Z Drill - Letter, 0.413 in Drill - Decimal Inch, 3-1/2 in Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 1-11/16 in Flute Length, 0.413 in Shank, 140 deg Point, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, TiAlN Coated, Applicable Materials: Cobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel

Specification Sheet

Catalog

Manufacturer Name: Garr Tool Company

Applicable Materials: Cobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel

Country of Origin: US

Cutting Depth: 3XD

Cutting Edge Material: Submicron Grain Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.413 in

Drill Size - Letter: Z

Finish: TiAlN Coated

Flute Length: 1-11/16 in

Flute Type: Spiral

Manufacturer Name: Garr Tool Company

Material: Submicron Grain Solid Carbide

Number of Flutes: 2

Overall Length: 3-1/2 in

Point Angle: 140 deg

Series: 1580H

Shank Size: 0.413 in

Type: High Performance

Extended tool life and greater surface finish through faster SFM rates
Up to 50 Percent faster than standard carbide drills
30 deg helix for better chip evacuation
Live tooling recommended on lathe processes

GARR Short Length Drill Bit, High Performance, Series: 1580H, Imperial, Z Drill - Letter, 0.413 in Drill - Decimal Inch, 3-1/2 in Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 1-11/16 in Flute Length, 0.413 in Shank, 140 deg Point, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, TiAlN Coated, Applicable Materials: Cobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel

Specification Sheet

Catalog
